Siêu Âm Người

< >

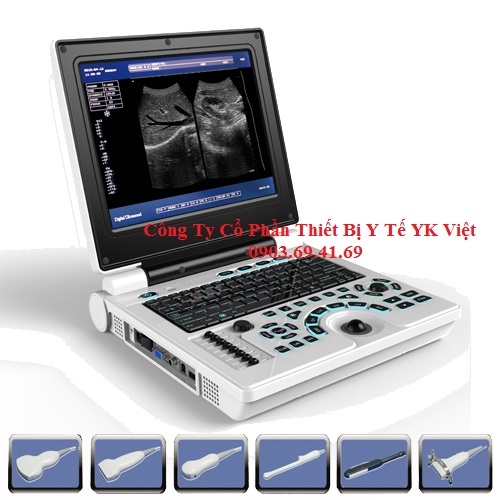

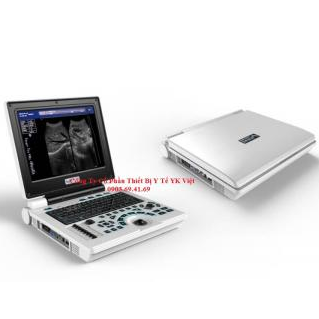

Siêu âm Trắng Đen Phủ Màu - XF30B

Giá: Liên hệ

Mã sản phẩm:

Hãng sản xuất : Xianfeng
Xuất xứ : Trung Quốc
Bảo hành : 12 Tháng
Tình trạng: Còn hàng

chi tiết sản phẩm

Main featrue:

.12.1 inch display

.backlight keys

.Built-in battery(capacity 3000mAh)

.Thin and light notebook design

.16 kinds pseudo color

.Color interface

.Built-in date report

Main Functions:

--Scanning mode: electron scanning

--Support Chinese and English display

--Zoom: Local x 2.0 magnification rate

--Dynamic range: 0~120dB adjustable.

--Focus position: Send: 1, 2, 3 and 4-segments dynamic electron focusing; when 1,2-segments focus,

the focus can be moved.

--Receive: receive real-time dynamic focus by focus

--Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HC,AC), expected date of confinement and fetus weight, etc.

--Annotation function: hospital name, patient's name, age and gender;

--64 body marks (with probe's position); Full-screen character annotation; Real-time clock display;

--Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.

--Gain control: 8 segments TGC and overall gain can be adjusted respectively.

--Image polarity: left and right flip, black and white flip, up and down flip.

--Permanent storage: ≧128 images.

--Image playback: series playback or check one by one.

--Image processing: γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.

--USB interface: store image only for U disk.

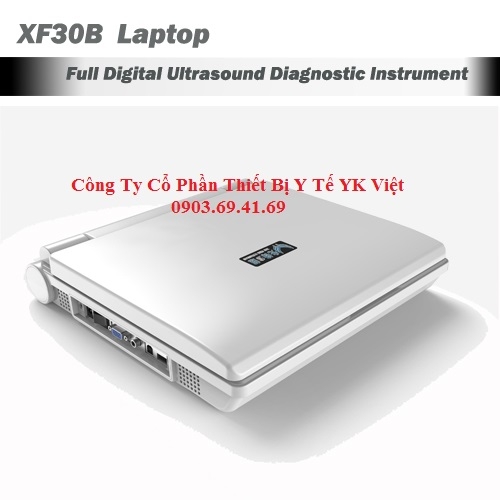

XF30B plus laptop full digital ultrasound machine

Main Technical Indexes

Standard probe: T35R60GZ convex array probe: 80 elements, R60, frequency of 3.5 MHz

Optional probe: T65R13GZ type cavity probe: 80 elements, R13, frequency of 6.5 MHz

Basic performance as below:

NO.	Name of technical indexes	Type T35R60GZ convex array probe	Type T65R13GZ cavity probe
1	Nominal frequency of probe MHz	f=3.5 MHz	f=6.5 MHz
2	Type of probe	R=60,Convex array	R=13,Micro-convex array
3	Scan depth mm	≥170 mm	≥60 mm
4	Lateral resolution mm	≤3mm(depth≤80 mm)	≤2mm(depth≤30 mm)
4	Lateral resolution mm	≤4mm(80 mm＜depth≤130 mm)	≤2mm(depth≤30 mm)
5	Axial resolution mm	≤2mm(depth≤80 mm)	≤1mm(depth≤40 mm)
5	Axial resolution mm	≤3mm(80 mm＜depth≤130 mm)	≤1mm(depth≤40 mm)
6	Blind area	≤5 mm	≤4 mm
7	Transverse geometry precision	≤10 %	≤10 %
8	Longitudinal geometric location accuracy	≤8 %	≤5 %

.Monitor: 12.1 inch LED display.

.Grey scale: 256 levels.

.The perimeter area measurement deviation: 20% or less.

.Running hours: ≥8h.

.The battery pack continuous working time: ≥1h.

.Input power: ≤110VA.

.Host weight: about 3.5 kg.

.Host appearance size: 320 ×265 × 70 (length × width × height) (mm3).

Configuration probe(Optional)

The configuration probe of the instrument showed as below:

Type	Scan model	Frequency range	element	radius of curvature	Scan width	Scan angle
T35R60GZ	Convex	2.5MHz～5.0MHz	80	R60mm	_	60°
T75L40GZ	Linear	5.0MHz～7.0MHz	80	_	L40mm	_
T65R13GZ	Cavity	5.5MHz～7.5MHz	80	R10mm	_	150°
T50R20GZ	Micro-C	5.0MHz	80	_	_	90°
