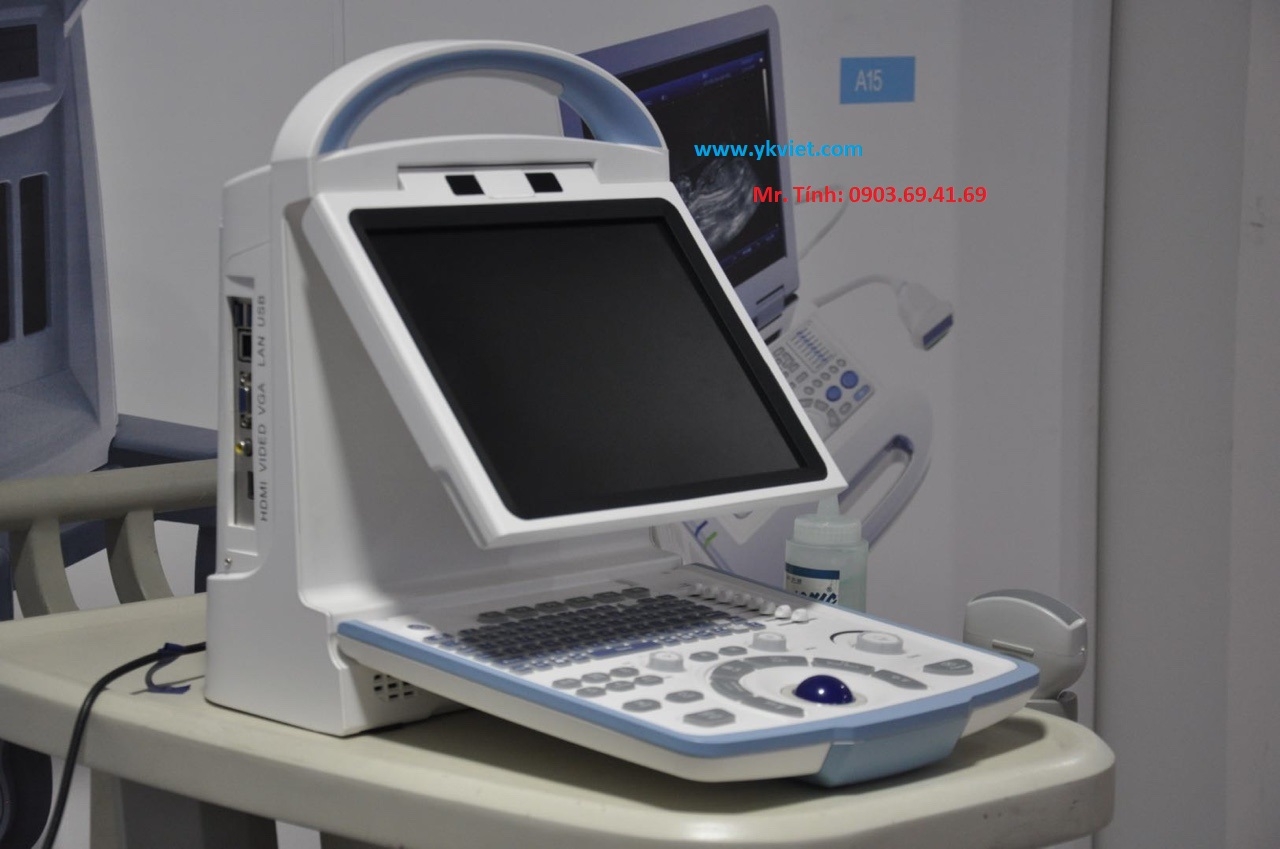

Siêu âm Xách Tay - Canyearn A65
Siêu âm Xách Tay - Canyearn A65

Giá: Liên hệ

    Mã sản phẩm:
  • Hãng sản xuất : Canyearn
  • Xuất xứ : Trung Quốc
  • Bảo hành : 12 Tháng
  • Tình trạng: Còn hàng

chi tiết sản phẩm

PRODUCT DESCRIPTION
1. Main Features

Operating System Window 7
Monitor 12.1 inch LED high-resolution 90° rotatable monitor
Scanning Mode B, B/B, 4B, B/M, M, 3D Image Reconstruction

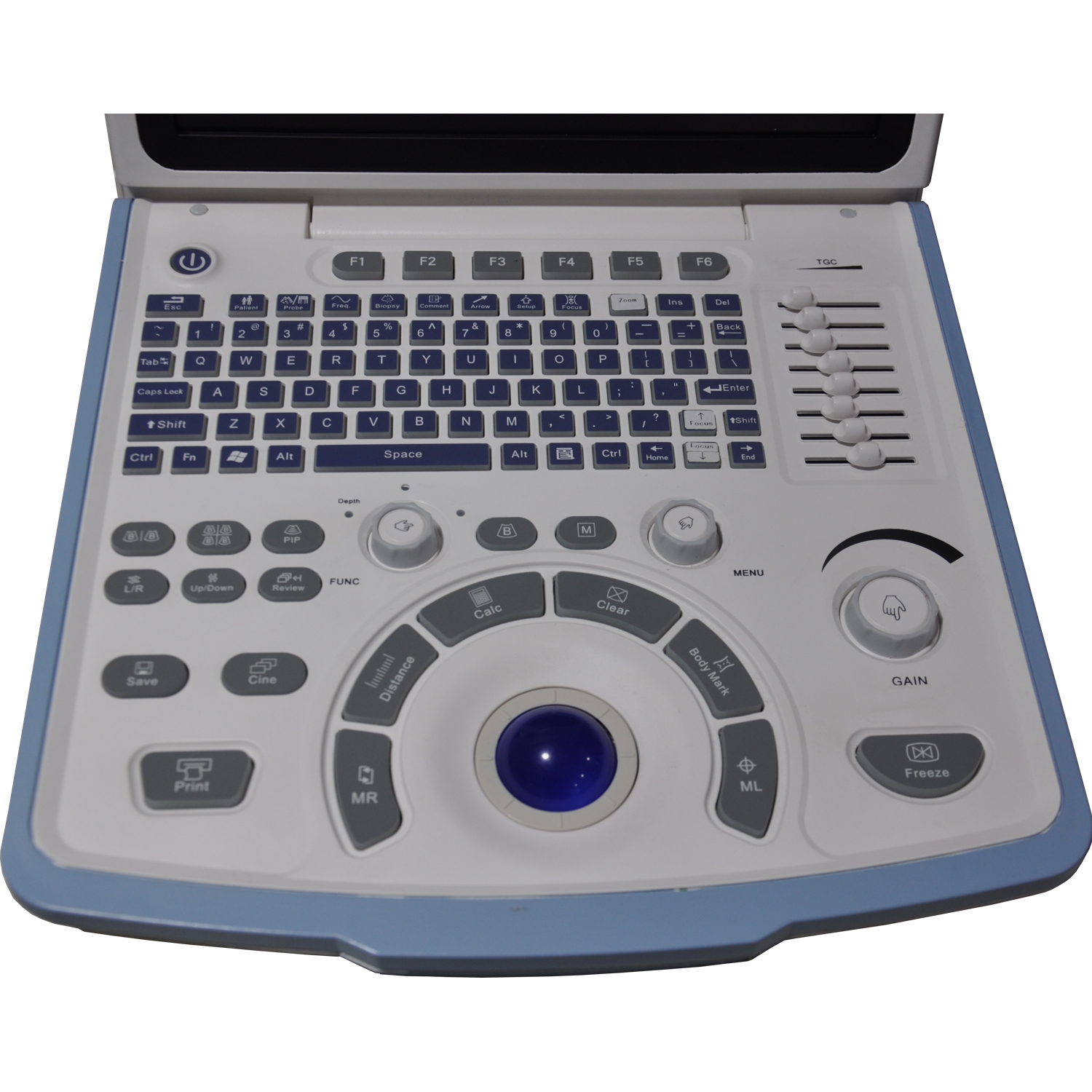

Keyboard Back-lit Silicone Keyboard
Cine Loop Up to 1024 frames
Gain 0-255dB
TGC 8 segment
Scanning Depth Up to 310 mm
Dynamic Range 20-150dB
Pseudo-color 40, or customized
Body Marking 140
Focus 4
Magnification 0.8-6.0
Probe Connector 2
Application Human/Animal
Language Chinese/English/Spanish
Matching Printer Laser/Vedio/Inkjet/Thermal printer
Peripheral Port USB, DICOM3.0, RS232, VGA, VCR, PAL-D
Measurement &
Calculation
B-mode: Distance, Perimeter, Area, Volume, Angle, Histogram, Cross Section, Hip Joint AngleM-mode: Heart Rate, Time, Gradient
Image Processing
Technologies
THI, Pre-process, Post-process, Dynamic Range, Contrast, Frame Correlation, Average Line, Edge Enhancement, Black-white Change over, Gray-scale
Transformation&Adjustment, Brightness, Gamma Correction

2. Applications

Leading image process technical and advanced and practical clinical solution method. Applicable to diagnosis of abdominal organs(trans-vaginal included), superficial organs and cardiac. With scalable design, upgrade continuously, fully meet the needs of clinical application extension.

  • Abdominal(Liver, Gallbladder, Spleen, Kidney, Pancreas) Gynecology(Uterus, Cervix Uterus, Endometrium, Ovary, Ovarian Follicle, Hydatoncus, Enclosed Mass)
  • Obstetric(AC, BPD, CRL, FL, THD, GS, OFD, HUMERUS, TIDIA, ULNA, HC, TAD, APTD, FTA, AFI, Analytic report of fetus and the growth curve)
  • Cardiology(LV, LV Function, Aorta, Mitral, Valve)
  • Urology(Left Renal Volume, Right Renal Volume, RUV, Prostate kidney)
  • Small Parts(Ophthalmology, Thyroid, Jaw and Face)

3. Optional Items

1 4 hours backup lithium battery
2 Biopsy Bracket

4. Probes Selection

3.5 MHz Convex Probe (3.5-14MHz variable frequency )
7.5 MHz Linear Probe (3.5-14MHz variable frequency )
7.5 MHz Transvaginal Probe (3-10MHz variable frequency)
5.0 MHz Micro-Convex Probe (2-6MHz variable frequency)
7.5 MHz Rectal Probe(80 elements)

6. Advanced Technologies

PC platform
Full Digital Ultrasonic Kernel Engine
One Touch Optimizer
Tissue Harmonic Imaging
Free 3D Imaging Reconstruction
DICOM 3.0
